MCP Apps

RubyLLM MCP supports MCP Apps through the UI extension capability and a metadata parsing layer on tools/resources/templates.

Table of contents

  1. Capability Registration
  2. Metadata Placement Rules
  3. Tool Metadata (apps_metadata)
  4. Resource and Template Metadata (apps_metadata)
  5. Adapter Notes
  6. Practical Flow
  7. Working Example Application

Capability Registration

Use the convenience helper to register the MCP Apps/UI extension:

RubyLLM::MCP.configure do |config|
  config.extensions.enable_apps
end

By default this registers:

"io.modelcontextprotocol/ui" => {
  "mimeTypes" => ["text/html;profile=mcp-app"]
}

You can override mimeTypes:

RubyLLM::MCP.configure do |config|
  config.extensions.enable_apps(
    "mimeTypes" => ["text/html;profile=mcp-app", "text/html"]
  )
end

Metadata Placement Rules

RubyLLM MCP keeps extension capability config separate from tool/resource metadata:

  • Client capability fields such as mimeTypes belong in extension registration
  • Tool UI fields such as resourceUri and visibility belong in tool _meta.ui

If you pass tool metadata fields to enable_apps, RubyLLM MCP raises an ArgumentError to prevent mixed concerns.

Tool Metadata (apps_metadata)

Each RubyLLM::MCP::Tool exposes parsed MCP Apps metadata:

tool = client.tool("render_widget")

tool.apps_metadata.resource_uri
tool.apps_metadata.visibility
tool.apps_metadata.model_visible?
tool.apps_metadata.app_visible?

Supported input forms:

  • Canonical: _meta.ui.resourceUri
  • Legacy alias: _meta["ui/resourceUri"]

If visibility is absent, RubyLLM MCP defaults it to ["model", "app"].

Resource and Template Metadata (apps_metadata)

RubyLLM::MCP::Resource and RubyLLM::MCP::ResourceTemplate expose:

  • csp
  • permissions
  • domain
  • prefers_border (supports both prefersBorder and prefers_border)

Example:

resource = client.resource("ui_shell")
meta = resource.apps_metadata

puts meta.domain
puts meta.permissions.inspect

Adapter Notes

  • :ruby_llm and :mcp_sdk both expose parsed apps_metadata
  • Only :ruby_llm advertises extension capabilities in full mode
  • :mcp_sdk remains passive for capability advertisement

Practical Flow

  1. Register UI extension capability (enable_apps)
  2. Ensure server sends MCP Apps metadata in _meta.ui
  3. Use RubyLLM MCP apps_metadata accessors to decide how to render/route UI content

For a hands-on implementation walkthrough, see MCP Apps.

Working Example Application

This repository includes a working example application with MCP Apps support in examples/mcp_app.

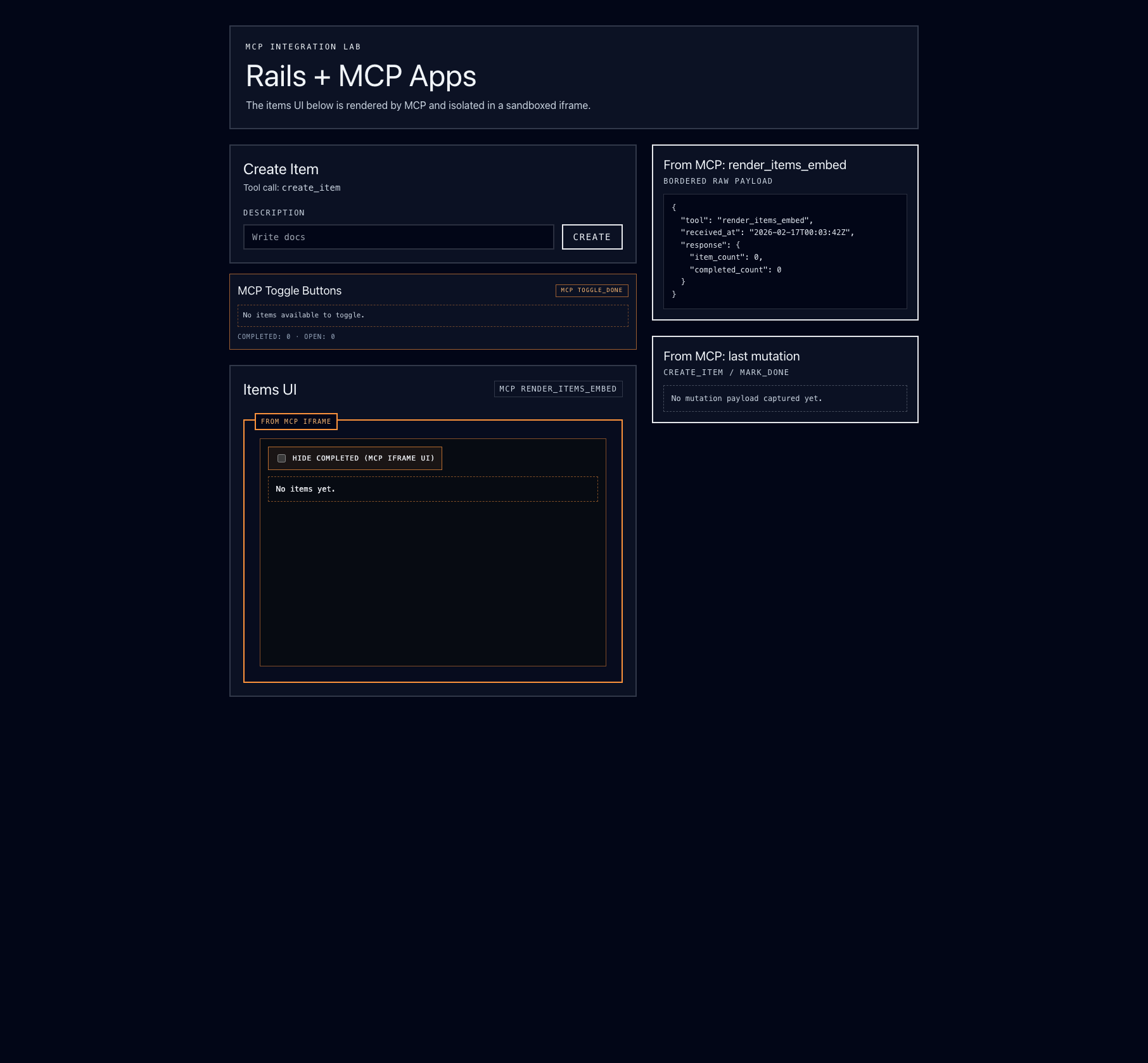

Working MCP Apps example application
